7005 T6 aluminum tubes oval shape

7005 aluminum alloy, American wrought aluminum and aluminum alloy. The strength of 7005 is higher than that of 7003 alloy.7005 T6 aluminum tubes oval shape has good weldability and can be strengthened by heat treatment. 7005 aluminum alloy extrusion material is often used to manufacture welded structures with high strength and fracture toughness, such as trusses, bars and containers of transportation vehicles; large heat exchangers, and parts that cannot be solid melted after welding; it can also be used to manufacture sports equipment, such as tennis rackets and softball clubs.

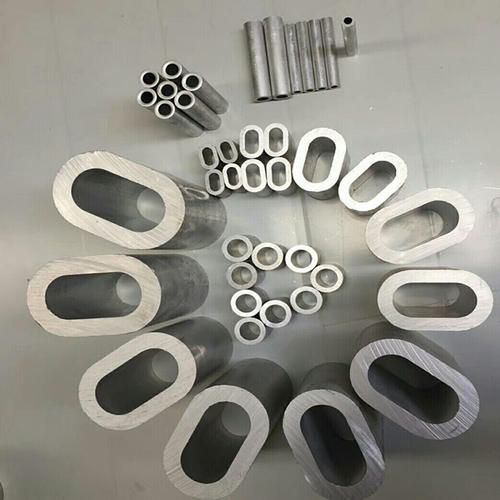

Henan Chinalco manufactures 7005 T6 aluminum tubes, oval shape, round tube, square tube, etc. Wall thickness: 1.0 mm ~ 50 mm, outer diameter: 5 mm ~ 500 mm.

7005 T6 aluminum tubes oval shape chemical composition
Si: ≤ 0.35
Fe: ≤ 0.40
Cu: ≤ 0.10
Mn: 0.20 ~ 0.7
Mg: 1.0 ~ 1.8
Cr: 0.06 ~ 0.20
Zn: 4.0 ~ 5.0
Zr: 0.08 ~ 0.20
Ti: 0.01 ~ 0.06
Other elements not specified: each: ≤ 0.05; total: ≤ 0.15
